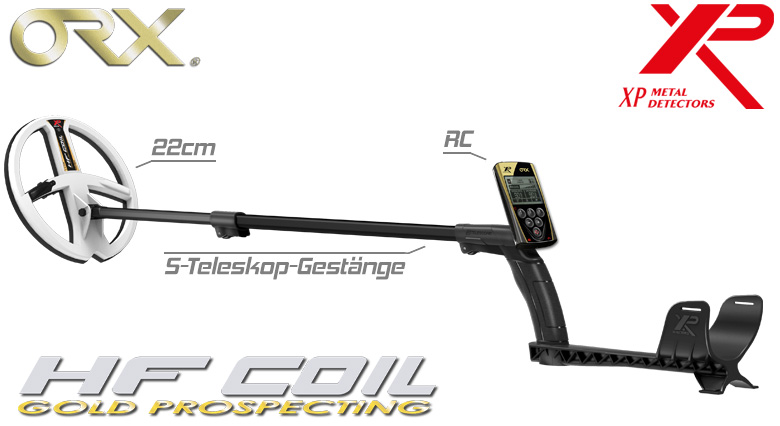

XP ORX with 22,5cm double-D high frequency searchcoil
The new XP ORX detector inherits some of the core features of its big brother, the XP Deus, and comes with a newly designed user interface. The developers of this outstanding detector focused on ease of use, high search performance and the unique, low weight. The user interface has a very tidy appearance, is clearly and logically arranged so that operation is almost instinctive. At a sensational 770g, the ORX is a lightweight and currently the lightest detector on the detector market! Thanks to its struts on the upper boom section and the middle boom made of high-tech aviation aluminum, the ORX is also extremely robust.The sensitivity to small parts on targets such as coins / relics / gold also impresses professional searchers. The fast response times guarantee optimum find separation in iron-contaminated soils, which are often found at old settlement sites, and offer correspondingly high find rates - even where other detectors fail. The HF coil technology also detects stably on difficult to detect soils and is virtually interference-free even under high-voltage power lines.
Ultra-light and robust - the new LITE S-telescope boom. The S-shape of the boom makes it particularly easy to swivel. The XP ORX can be assembled and disassembled in seconds using quick-release fasteners.
The ORX is a completely wireless detector with a patented radio connection to the search coil. The signal evaluation takes place directly in the search coil, resulting in a significantly better signal processing quality than other conventional detectors. The new receiver radio headphone system (can be ordered as an option) is designed as comfortable neckband headphones. It rests lightly on the ears and the headband behind the neck prevents slipping when digging. The XP Pinpointer MI-6 can be integrated into the ORX. The digital shielding between the wireless headphones and the MI-6 pinpointer (can be ordered as an option) prevents the two devices from interfering with each other.
Modern user interface that inspires: clear, logical, everything always in view. Simple operation and all important functions integrated. The remote control can be mounted on the boom or worn in an optionally available wristband.
Available as an accessory: The newly designed WSA wireless headphone receiver with volume control (not compatible with XP Deus).
Features
- Ultra light and robust
- Top search performance
- Wireless, patented radio connection
- HF high frequency technology
- Waterproof radio search coil
- XP cable headset
- Working frequencies with supplied 22.5cm double D HF coil 15/28/54 kHz + crossovers
- Working frequencies with optional 24x13cm double D HF coil 15/28/80 kHz + crossovers
- Operating frequencies with optional 22.5/28/28x34 double D X35 coil 4/8/12/25 kHz + crossovers
- Target ID Visual + Audio
- Extreme sensitivity to small targets with high frequencies
- 4 factory programs: Gold search (x2) - Coins and relics (x2), + 2 storable user programs
- Fast and secure radio connection, latest technology: coil - remote control - headphones - pinpointer MI-6.
- Newly designed, ultra-lightweight Telescopic-S boom
- The lightest Metalldetektoren at present with a sensational weight of only 770g (remote control worn on the belt)
- Simple operation with new user-friendly interface / operation
- Wireless connection to the MI-6 pinpointer + extended setting options via the remote control
- Lithium batteries for about 20 hours of searching on one charge
- Easy to charge with a certified USB charger or via computer (XP USB mains charger optional)
- Available with the HF coils - 22cm (round) or with the 24/13cm (elliptical)
- Compatible with X35 coils (22, 28, 34/28cm).
- Software update possible (on the remote control via USB cable)
- Go Terrain Mobile App compatible (available in 2019)
- 5 year warranty
Technical data
- 22cm double-D search coil radio, waterproof
- 99 sensitivity levels
- 21 frequencies (13 - 81 kHz)
- 99 levels of discrimination + 5 discrimination levels in the IAR gold search programs
- 20 threshold levels
- 4 selectable response times
- Iron tone with audio pitch (can be switched on and off)
- Manual ground adjustment from 60 - 90
- Automatic ground adjustment (Fast Grab)
- Salt mode for beach with ground suppression 00-25
- 4 factory programs + 2 storable user programs
- Target ID display with iron probability display
- Pinpointing with target zoom
- Lithium polymer batteries without memory effect
- Battery capacity per charge Coil, 20 - 28 hours, remote control 19 hours, WSA radio headset 15 hours (optionally available as an accessory)
- Display lighting
- S-telescopic boom LITE
- Go Terrain app compatible (smartphone app coming in 2019)
- MI-6 50 sens levels
- MI-6 audio tone adjustable from 120hz to 1582hz
- MI-6 2 audio modes Pitch or Pulse
- MI-6 3 factory programs + 1 storable user program
- Function: search for lost pinpointer (even if pinpointer is switched off)
- Target zoom screen
- MI-6 battery indicator
Included in delivery
- XP ORX 22, latest version:
- Remote control
- 22.5cm double-D HF searchcoil, 6m waterproof
- Coil protection
- Screw set for HF coils
- S-telescopic boom LITE
- Lithium polymer batteries
- USB charging cable
- German instruction manual
Product video
Customer reviews4
Evaluation:| Author: Bogutta| Date: 21/02/2019
A very good detector that is relatively easy to operate. The selection options are clear, but offer sufficient possibilities to adapt the device to different ground conditions. The pinpointer (MI6) should be paired with the detector as this significantly increases the search performance of the pointer (the first test without pairing was somewhat disappointing - but convincing when paired). The headphones are also highly recommended, as you get much more accurate results. All in all, after some initial skepticism, the detector has fully convinced me.
Evaluation:| Author: M. Gabele| Date: 10/01/2019
Very well made as stated in the description.
Shipping went very quickly
Shipping went very quickly
Evaluation:| Author: Maximilian Gabele| Date: 10/01/2019
Very well made as stated in the description.
Shipping went very quickly
Shipping went very quickly
