Whites TM808

Whites TM808 demonstration unit in new condition latest version / depth finder

The Whites TM808 has been developed for searching for large and deep objects - small objects lying individually in the ground can NOT be located. From a total mass of about the size of a 0.3 l beverage can, detection is only possible. The advantage of this is that large parts can be located quickly in areas heavily littered with small parts (e.g. at aircraft crash sites or ancient settlement sites). Only the large parts are located, e.g. aircraft parts, steel-reinforced bunkers, buried weapon boxes or precious metal treasure depots of all kinds.

The TM808 locates without metal discrimination, i.e. all metals are detected. This makes this easy-to-use depth finder also interesting for pipe and valve cap searches in civil engineering and road construction.

The greatest possible search depth that can be achieved on very large parts such as a small car is approx. 6m! This is very impressive because the best conventional top hobby pan detectors only reach depths of up to 2 meters. Even from the theoretical "find size" of a 1 liter thermos flask, the TM808 V.2012 is superior to a "normal" detector in terms of depth performance and is therefore particularly suitable as a supplement to the VLF pan detector to "rediscover" searched search sites.

Included in the scope of delivery

• Bottle caps, pull tabs, nails, single coin: cannot be located
• Pistol approx. 70 cm - up to 100 cm
• Bronze figure approx. 50 cm - up to approx. 130 cm
• Metal box 60/40/30 cm: up to approx. 180 cm
• Max. Search depth: approx. 600 cm

Technical data

• 3-piece control unit with 2 antennas
• Plug-in system with quick-release fasteners for precise fixing of the antennas
• Sturdy handle
• Motion and No Motion operating modes
• Push button for quick adjustment to maximum depth search performance
• Analog signal intensity display on the top of the located object
• Signal playback via loudspeaker
• Headphone connection 6.3 mm jack plug
• 4 x 1.5 Volt Mignon battery
• Optical battery check via the signal intensity display
• Simple operation!

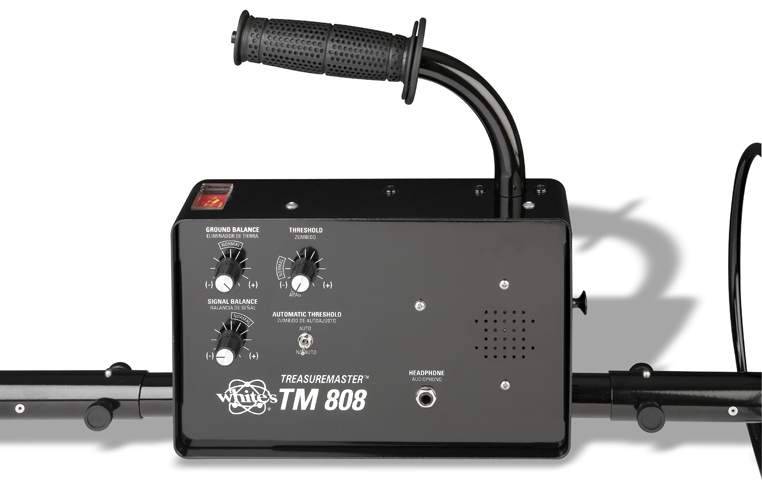

Above: Side view of the robust aluminum housing of the TM808 V.2012 with its four control elements.

Included in the scope of delivery

• Whites TM808 demonstration unit in new condition, latest version / depth finder
• Headphones with extra-long cable and volume control
• battery box
• 4 x 1.5 volt battery
• German and English operating instructions + DVD
• 2 year warranty
• free telephone support for all questions about the Whites TM808
